Ampack
Ampack AF 6/6

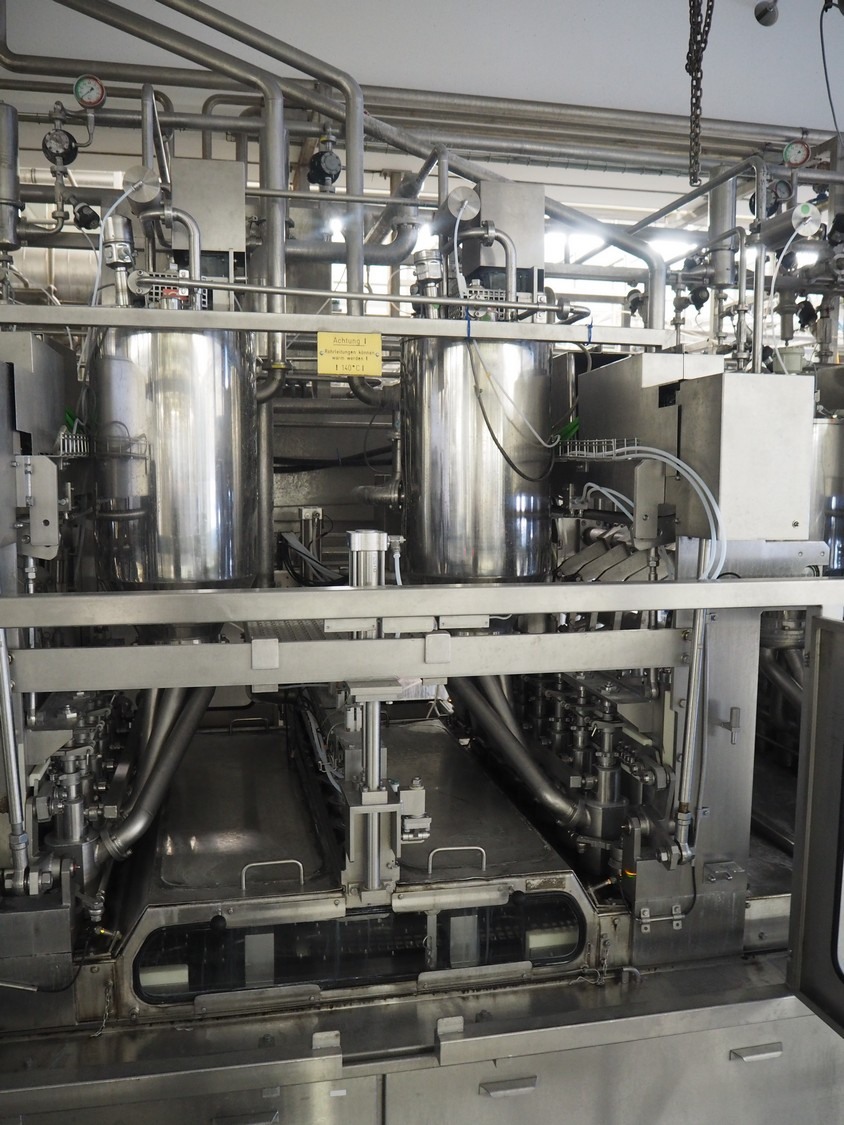

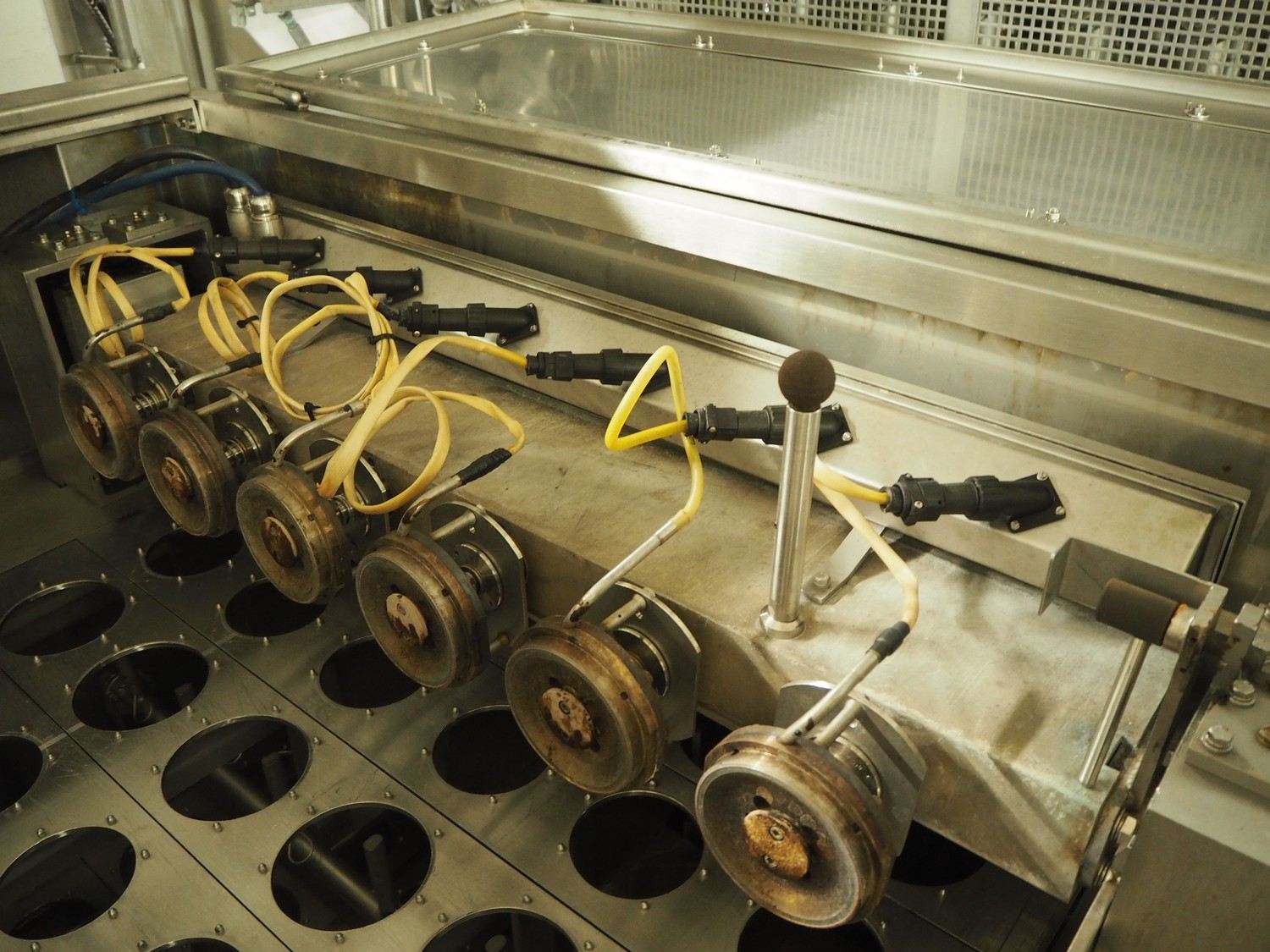

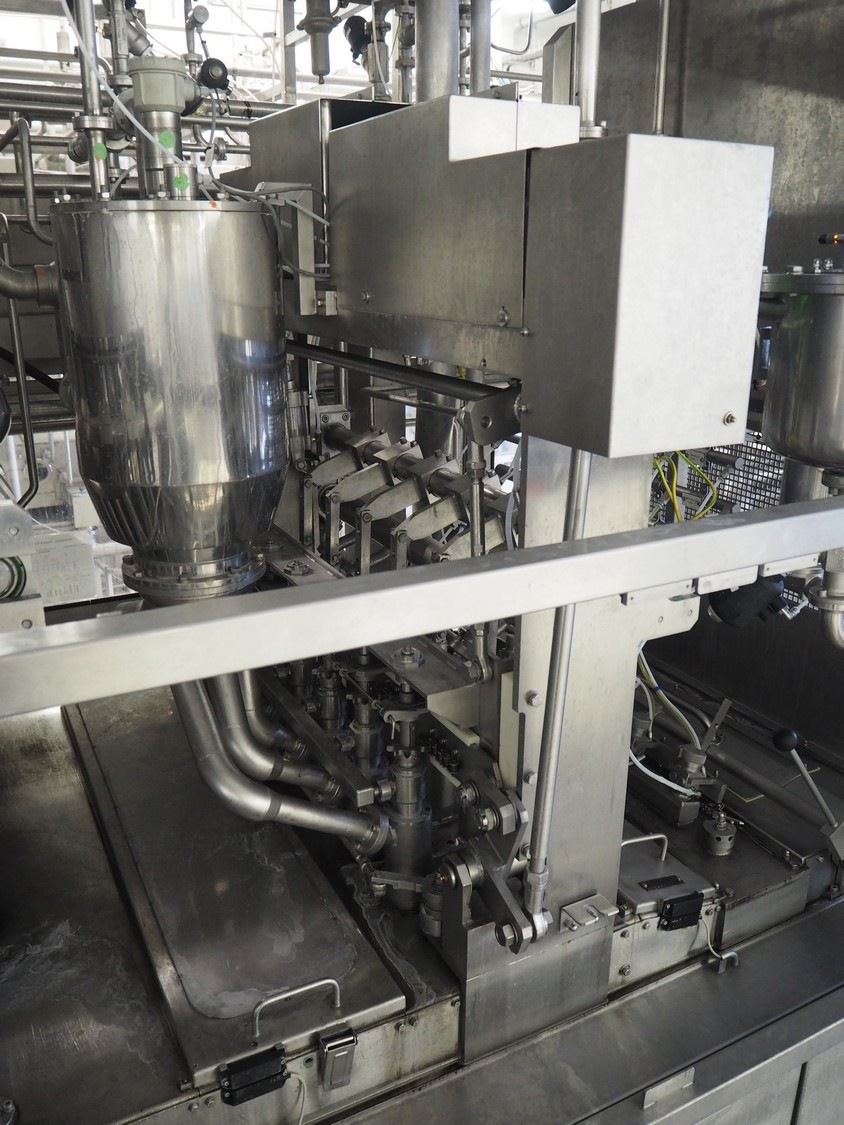

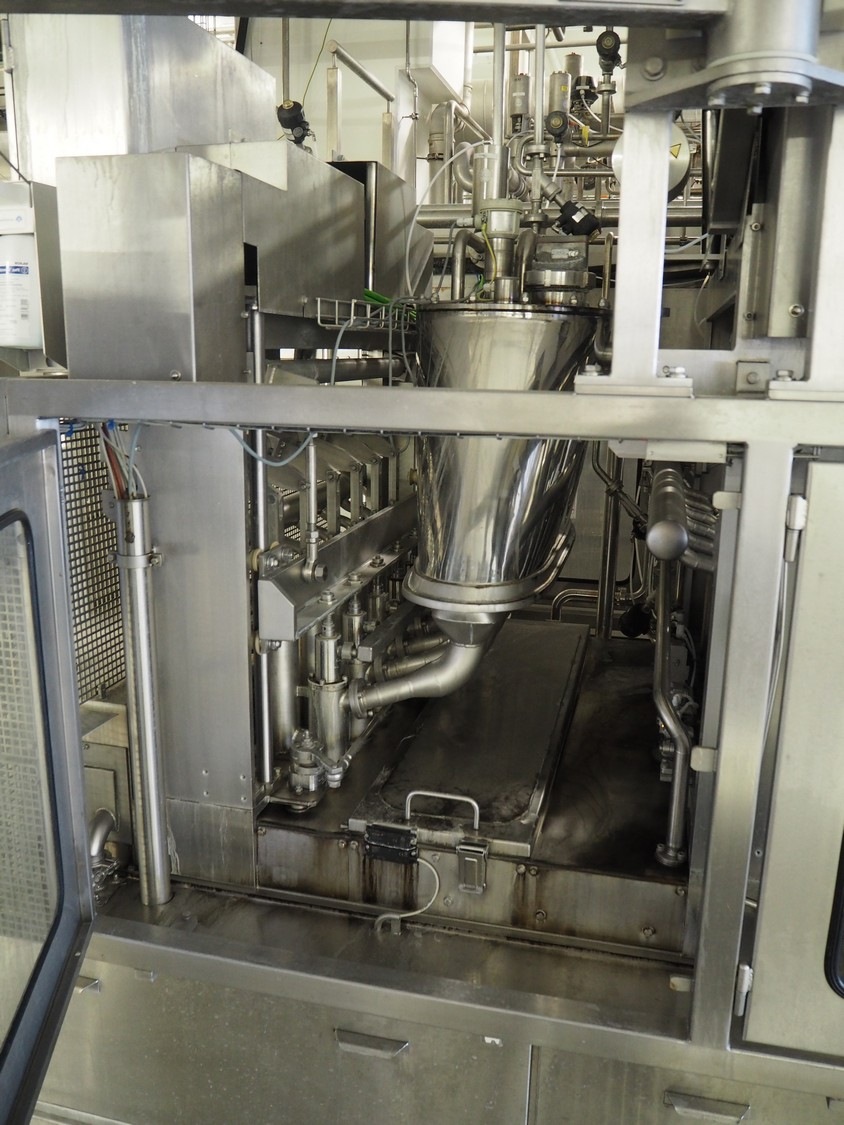

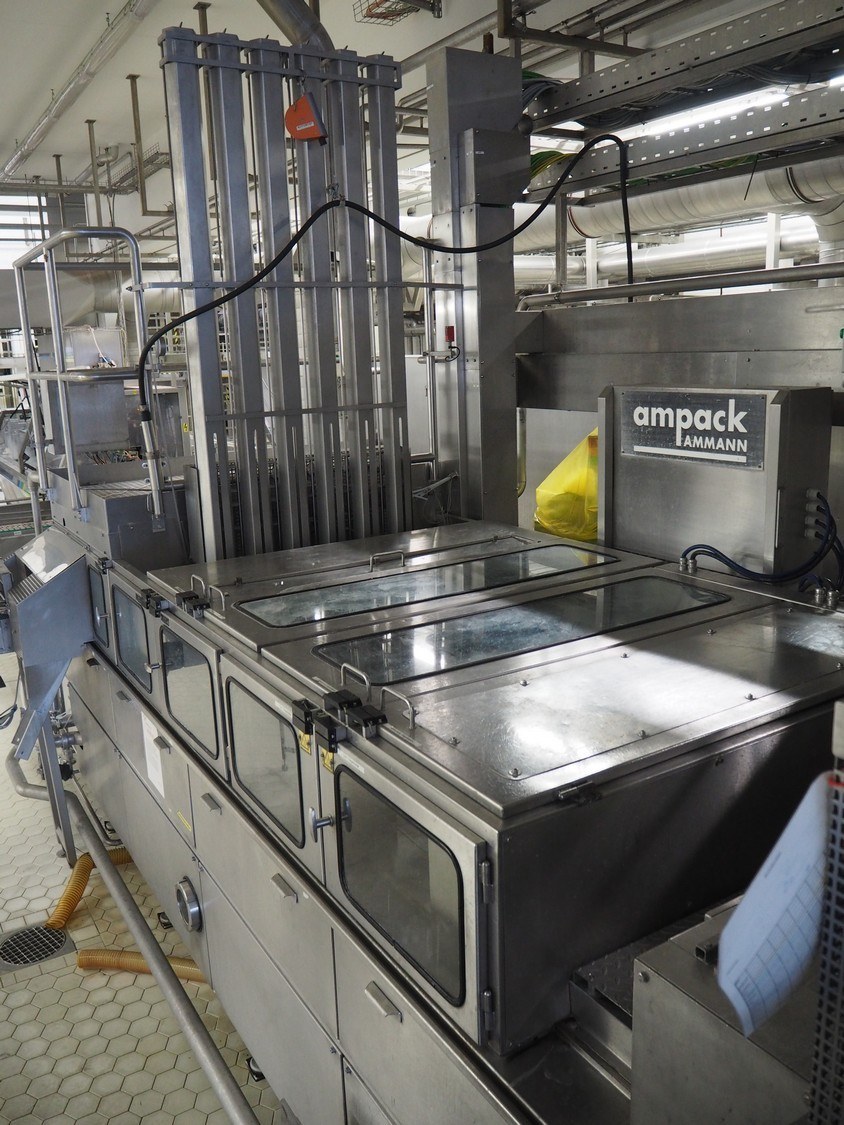

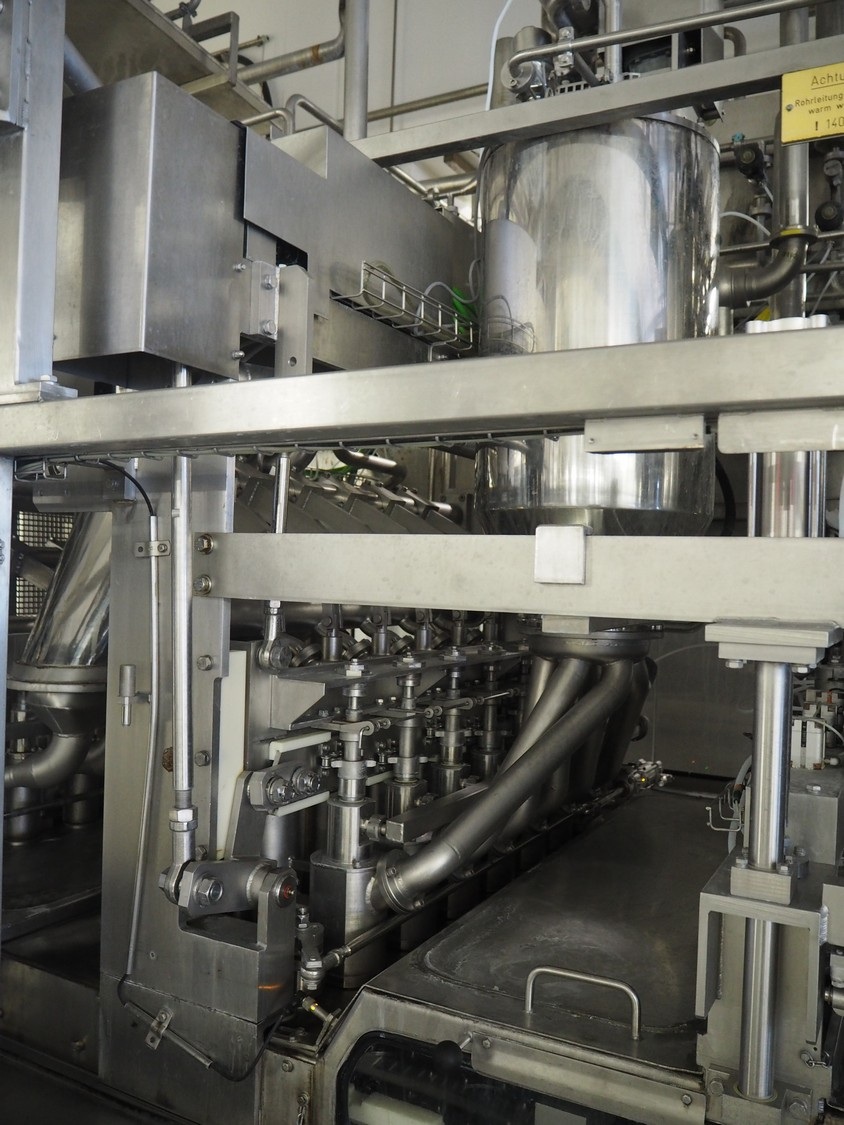

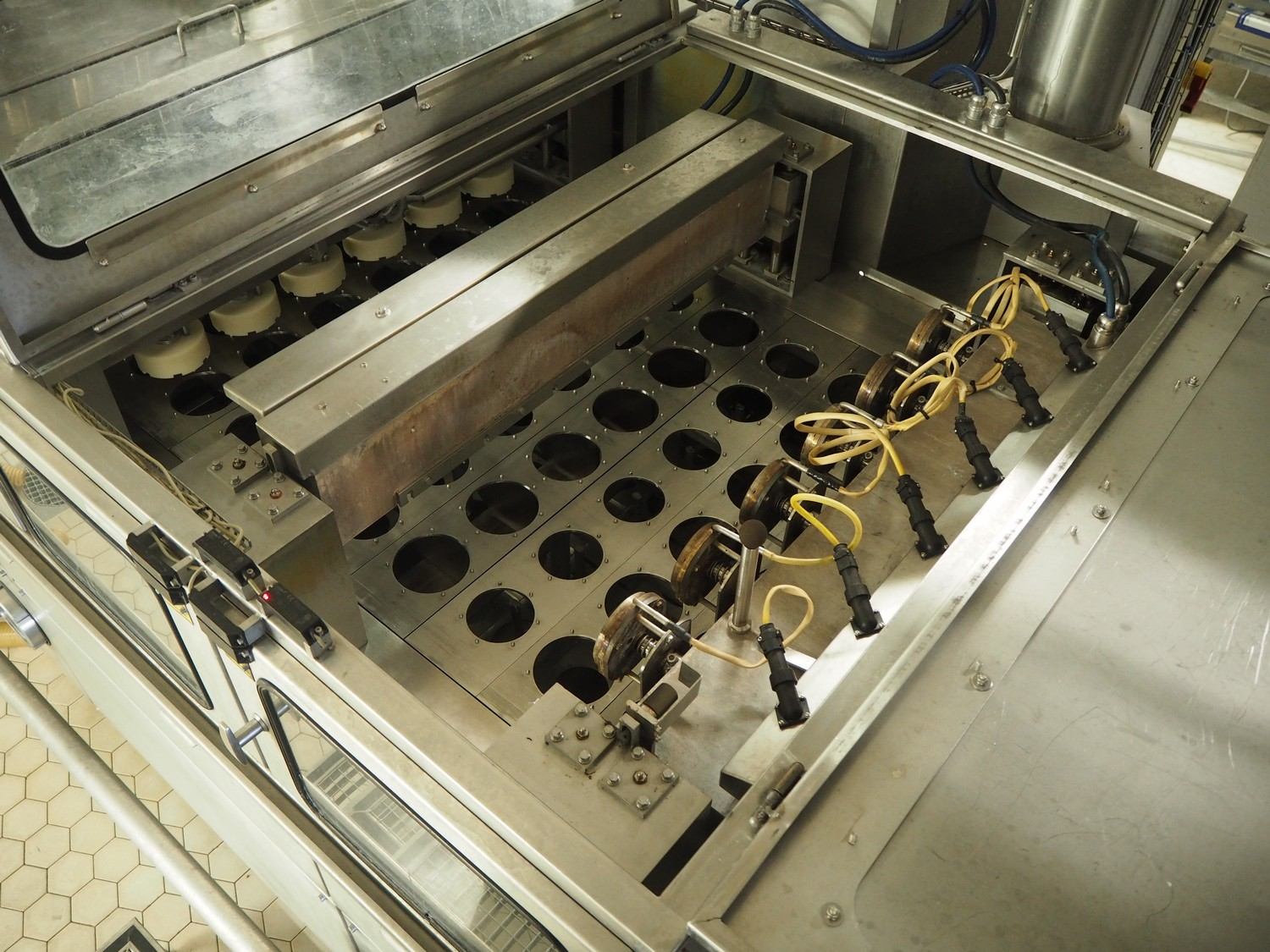

Liniair cup filler with 6 heads, cup size round: 112 and 130 mm. Stations: Automatic cup infeed (placed directly above the machine on 2nd floor), cup destacking.“No“ and “double“ cup detection, cup decontamination by peroxide (H2O2), predoser 1: oil (sunflower or corn oil) injection as antistick, predoser 2: pistondoser (20-175 ml) for fruit pulp (400-2000 cP, particles up to 16 mm), doser 3: maindoser 1 (50-525 ml) for viscous products. With 1 jacketed hopper with agitator, (CIP cleanable), Doser 4: main doser 2 (80-800 ml, 400-2000 cP, particles up to 18 mm) with 1 jacketered hopper with agitator. Dosers: nr 2, 3 and 4 are piston dosers with rotary cut of valves. Doser 5: After doser 20-175 ml. Negative-valve (suitable for whipped cream up to 150% over run), and a 6th combined doser. This is a system to make 'side by side' duo filled products, 2 products next to eachother, this is done by a filler nozzle that takes the product from main doser 1 and 2 at the same time and it is possible to rotate the cup to get 'swirreld' products. Seal decontamination by spray H2O2+ UV lamps and dispending by vacuum, 2 x heat sealing station for 112 and 130 mm separate, seal leak detection system, snap-on lid, outfeed conveyor. Cuplifters under the dosers with servo drive. Machine is fully guarded, is ultraclean with an sterile air system and 2 external air blowers (make: Becker) and has automatic central greasing systems. Easy format switch by moving the chain 1 step. The speed depends on cup volume, head space and product viscosity between 9720 (27 to 34 strokes/min) Controls: Siemens model: S7 and Siemens Touch screen HMI. CIP collecting tank, CIP pump and valves. Full set documentation.
