- Melangeur
Tanks
Mix tanks
STN11288
Melangeur
32051
2006
2466 cups per hour

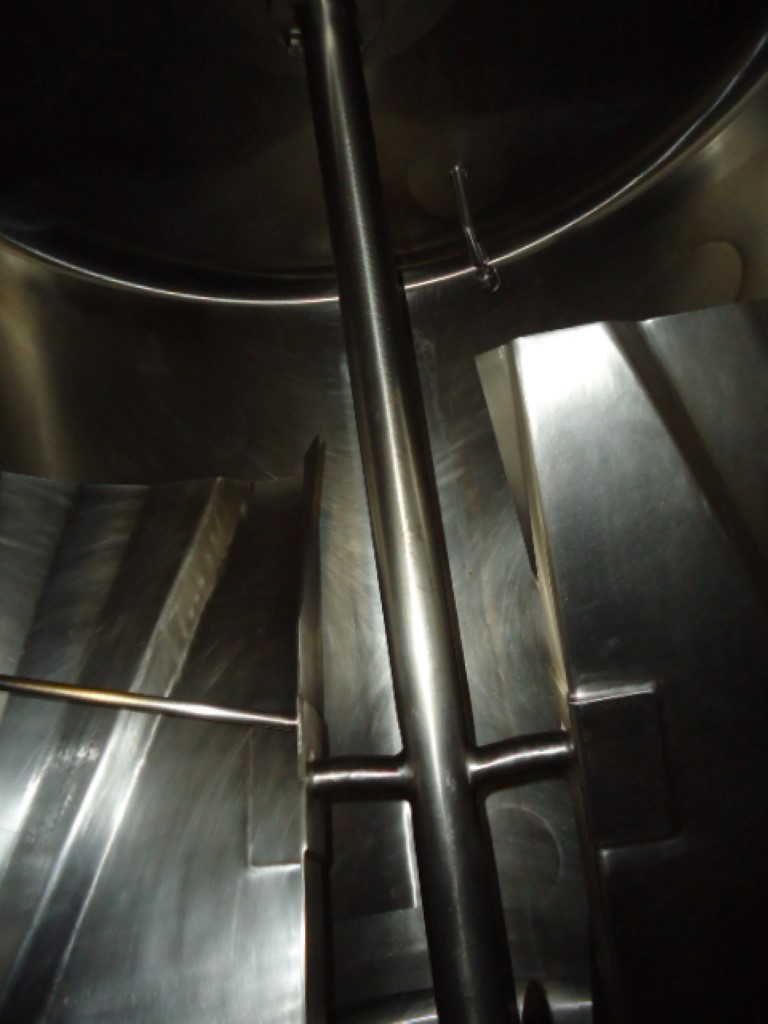

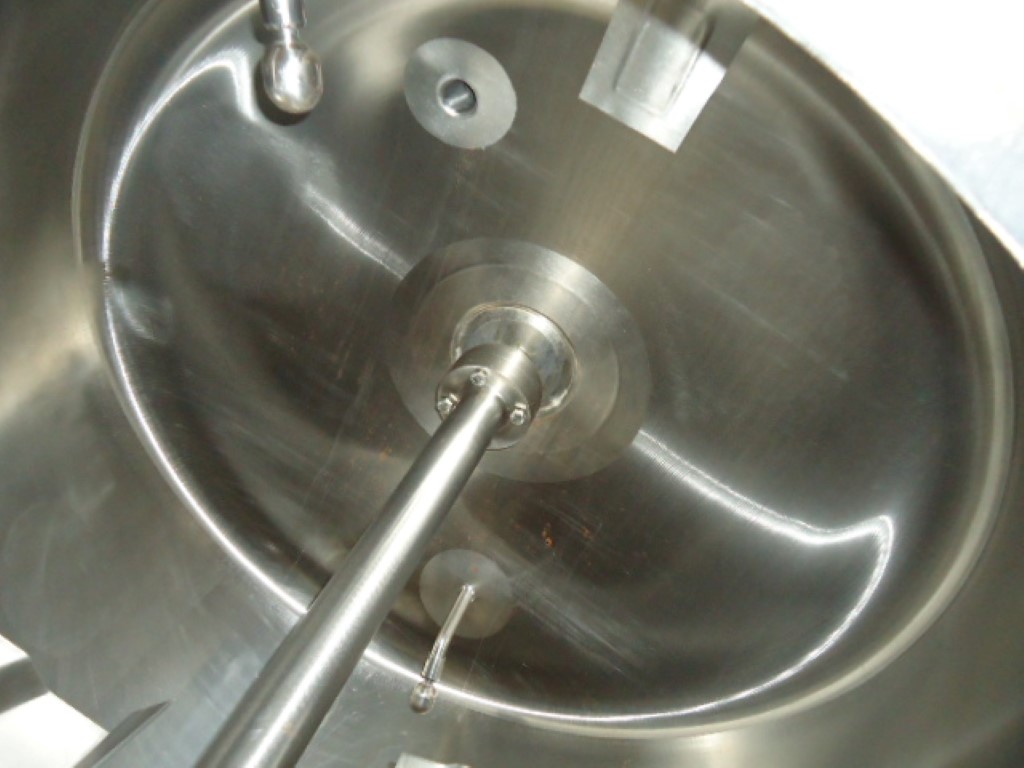

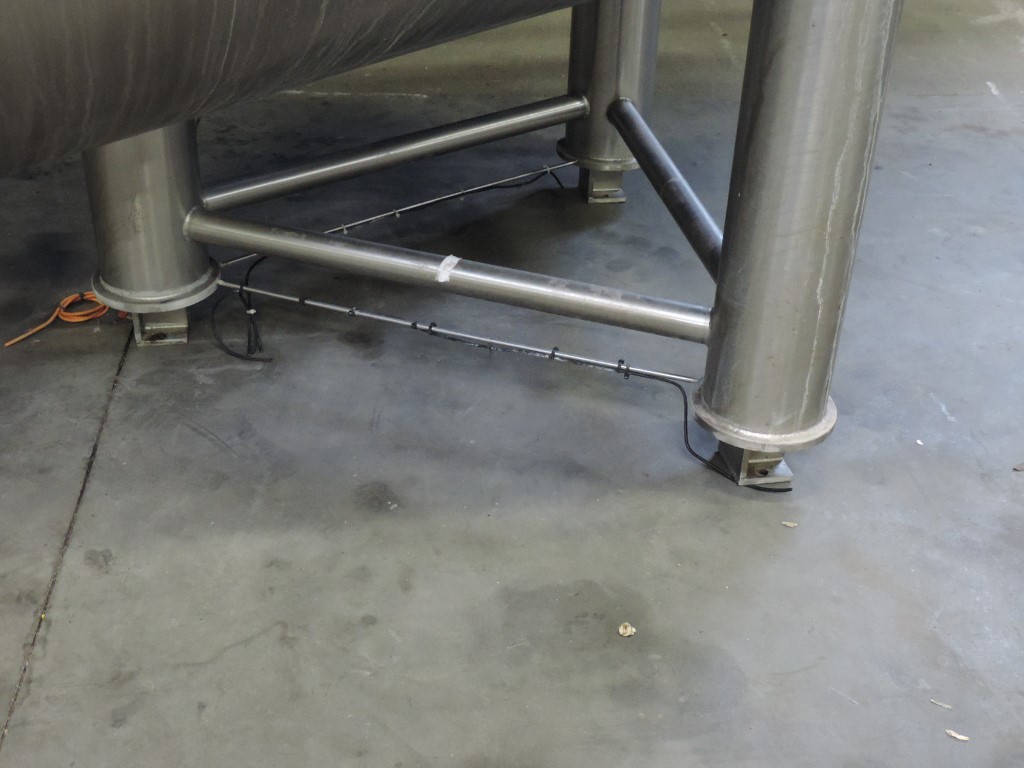

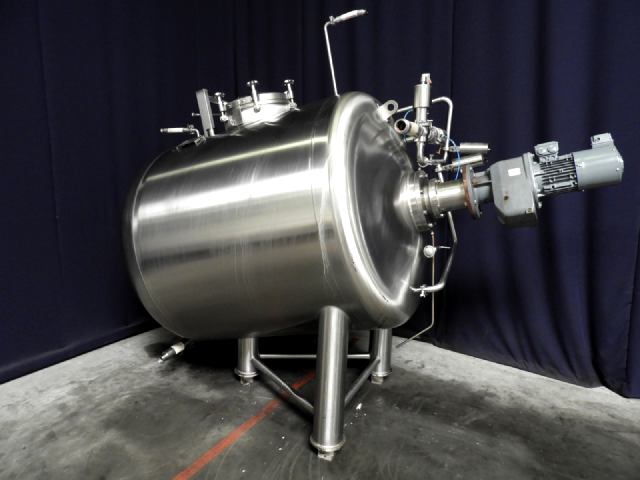

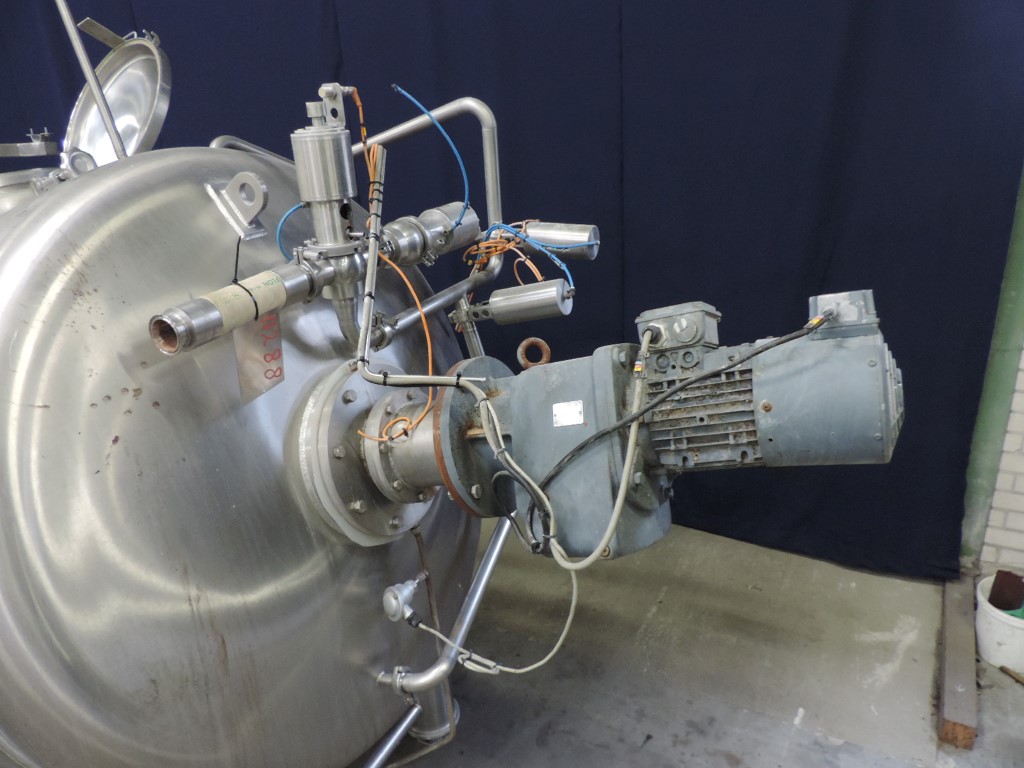

Vacuum mix tank, Horizontal inclined placed, single jacketed. With horizontal mixer, with blades, Side driven low speed agitator 2,2 kW - 5,22 A - n1: 1.440 rpm - n2: 17 rpm (i=86,92). Max. allowable pressure in tank 1,5bar up to full vacuum -1bar. Temperature (cuve shell) 15/130 °C. Obliquely down 12° degree. Product outlet, 2" tryclamp. With pneumatic inlet valve and bottom valve, outlet height: 27 cm, Pt-100 temp sensor, 2 Cip spray bowls, manhole in top round diameter 45 cm. Three feet, prepared for loadcells (no feet) innner dimensions of tank diameter 140 cm - length 180 cm outer dimensions lxwxh: 285 x 145 x 247 cm.
